Phoroptor VRx
Reichert

Phoroptor VRx

If your refraction lane needs a digital upgrade with voice-activated control and deep EMR integration, the Reichert Phoroptor VRx is the thinnest, most connected digital refractor available — built on the brand that defined the phoropter category over 90 years ago. Its programmable test sequences standardize refraction across multiple providers, while bidirectional EMR communication with 15+ systems eliminates redundant data entry. For practices that value the Phoroptor name, want telehealth-capable remote refraction, and need a digital refractor that works with virtually any existing lane setup, the VRx is the logical next step from manual.

Request Pricing → Schedule a Demo →
Practice Fit

Where The Phoroptor VRx Wins

The VRx is strongest when the practice wants a digital refraction lane that feels premium, programmable, and easier to standardize.

Best Fit

Busy refraction-driven clinics, OD/MD groups, and premium exam lanes where the doctor wants more speed, consistency, and digital control during subjective refraction.

Why This

If you want a digital refractor with the deepest EMR integration in the category, the VRx communicates bidirectionally with 15+ systems including Epic — eliminating the manual re-entry that creates errors and slows down the workflow. Its voice-activated control and programmable test sequences also help standardize refraction across multiple providers in the same practice.

Practice Impact

It improves throughput, helps standardize doctor workflow, and gives patients a more technology-forward refraction experience that supports premium positioning.

Premium Refraction

Why Practices Choose Phoroptor VRx

Ultra-Thin, Ultra-Quiet

The 26 mm lens profile — thinnest in the category — keeps the VRx out of the patient’s field of view, while near-silent lens exchanges eliminate the mechanical noise that makes traditional refraction feel dated.

Deepest EMR Integration

Bidirectional connectivity with 15+ EMR systems including Epic means refraction data flows automatically into the patient record and starting values flow back into the VRx — eliminating manual re-entry and reducing transcription errors.

Standardized Refraction

Pre-programmed and customizable test sequences ensure every provider follows the same refraction workflow. Voice-activated control keeps the doctor focused on the patient while Bluetooth connectivity enables telehealth-ready remote refraction.

Product Details

Phoroptor VRx Up Close

Official Reichert product images showing the ultra-thin lens profile, touchscreen controller, and exam lane integration.

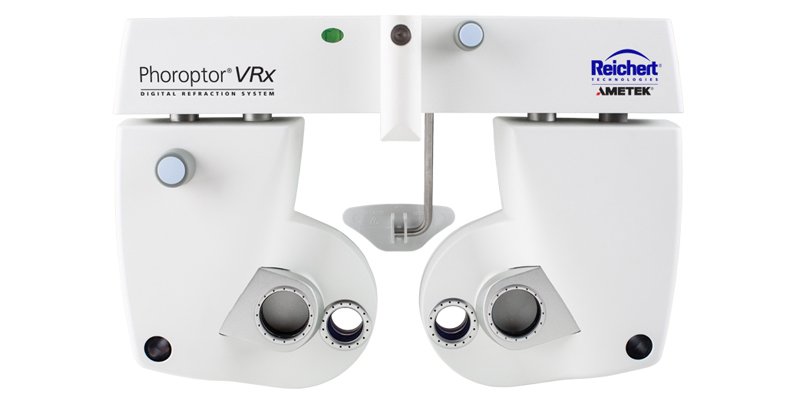

Phoroptor VRx ultra-thin 26mm lens profile view

Ultra-Thin Profile — 26 mm lens thickness

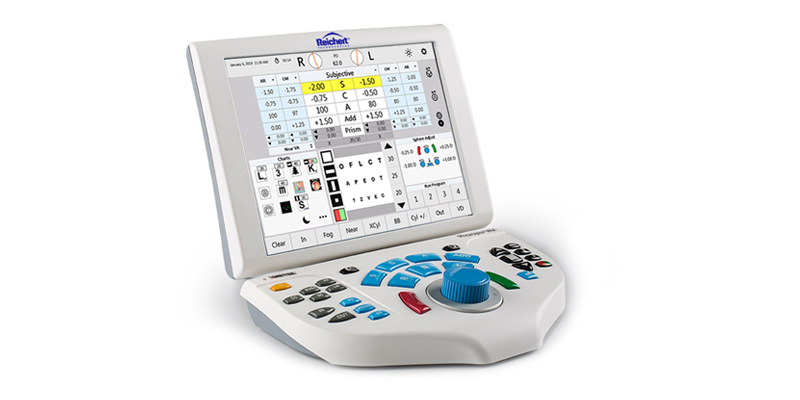

Phoroptor VRx touchscreen controller and keypad interface

Touchscreen Controller — 10.4″ display with LED keypad

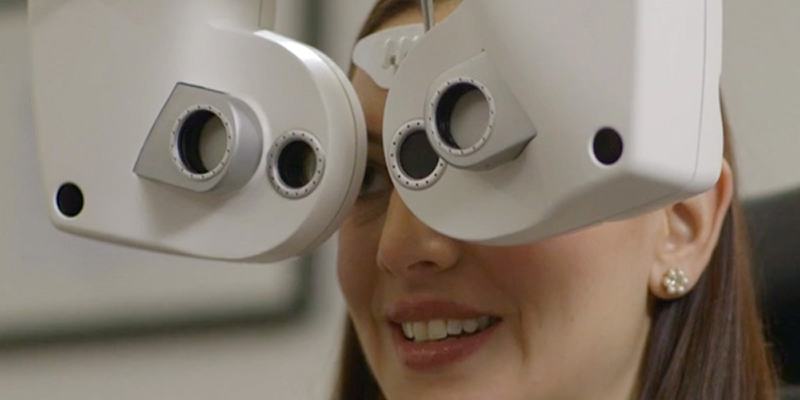

Phoroptor VRx installed in modern exam lane

Exam Lane Integration — Premium refraction experience

Product images courtesy of Reichert / AMETEK.

Specifications

Technical Details
Sphere Range
+17.75 to –22.25 D (0.25 & 1.0 D steps)
Cylinder Range
–8.0 to +8.0 D (0.25 & 1.0 D steps)
Cross Cylinder
±0.25 D (Jackson, Smart Cylinder, Split Cylinder modes)
Lens Profile
26 mm (thinnest available) / 19 mm free aperture
PD Range
50–80 mm (1 mm steps)
Head Dimensions
12.2" W × 8" H × 2.8" D (at 64 mm PD)
Weight
9.75 lbs without prism / 10.25 lbs with prism
Display / Controls
10.4" touchscreen (1024×768) + LED-backlit keypad + multi-function knob
Connectivity
Built-in Bluetooth, bidirectional EMR (15+ systems)
Compatibility
25+ lensmeters, 40+ auto refractors, ClearChart & projector systems
The Carolina Optics Advantage

Why buy through us?

Lane Design & Integration

We help plan your exam lane layout, ensure EMR connectivity, and configure pretest-to-refraction data flow so the technology fits your existing workflow.

On-Site Installation & Training

Our team handles delivery, mounting, calibration, and hands-on training for doctors and staff until your lane runs smoothly.

Same-Day Support

When you need help, you get our team directly — no call center, no ticket queue. Most issues resolved within 24 hours.
