The Firefly S390L Digital Slit Lamp
MediWorks

The Firefly S390L Digital Slit Lamp

The Firefly S390L is a fully integrated digital slit lamp with a built-in 12-megapixel camera and MediView imaging software — designed to turn everyday anterior segment exams into documented, shareable clinical conversations. High sensitivity imaging keeps the slit sharp and clear under weak light, while wide dynamic range captures iris and sclera simultaneously with realistic color distribution. The Firefly also supports infrared meibomian gland evaluation with AI-assisted gland loss analysis and orthokeratology lens fitting documentation. The system connects via USB to your existing exam lane CPU (or any Windows PC), so there’s no dedicated workstation to plan around. For practices that want integrated slit lamp documentation and cleaner anterior segment imaging without bolting on aftermarket adapters.

Request Pricing → Schedule a Demo →
Practice Fit

Where The Firefly Wins

If your practice wants to document every slit lamp finding with integrated digital imaging — not a bolted-on aftermarket camera adapter — The Firefly is the platform.

Best Fit

Comprehensive ophthalmology, medical optometry, anterior segment, and MGD focused practices that want to document every slit lamp finding with integrated digital imaging — not a bolted-on aftermarket camera adapter.

Why This

The Firefly’s 12-megapixel camera is engineered into the optical path with automatic exposure and wide dynamic range. Infrared meibography with AI gland analysis and ortho-k lens fitting capture give you documentation capabilities that bolt-on solutions cannot match.

Practice Impact

Strengthens patient education with side-by-side image comparisons, supports meibomian gland evaluation with objective infrared evidence, and turns routine anterior segment findings into visual conversations that improve treatment acceptance.

Platform Strengths

Why Practices Choose The Firefly

Integrated 12 MP Digital Imaging

The camera is built into the optical path — not adapted or bolted on. Every slit lamp exam becomes an imaging opportunity with automatic exposure, gain, and white balance, plus 30fps video capture for real-time documentation.

Infrared Meibography

Infrared meibography with AI-assisted gland loss analysis identifies meibomian gland changes and anchors MGD conversations with objective imaging evidence your patients can see.

Plug-and-Play Integration

Connects via USB to your existing exam lane CPU or any Windows PC running MediView. No dedicated workstation to plan around, no new footprint in the lane — just add imaging to the computer you already have.

Image Quality

Integrated Digital Imaging Examples

Anterior segment and meibomian gland images captured with The Firefly S390L — 12 MP integrated camera with wide dynamic range and infrared meibography.

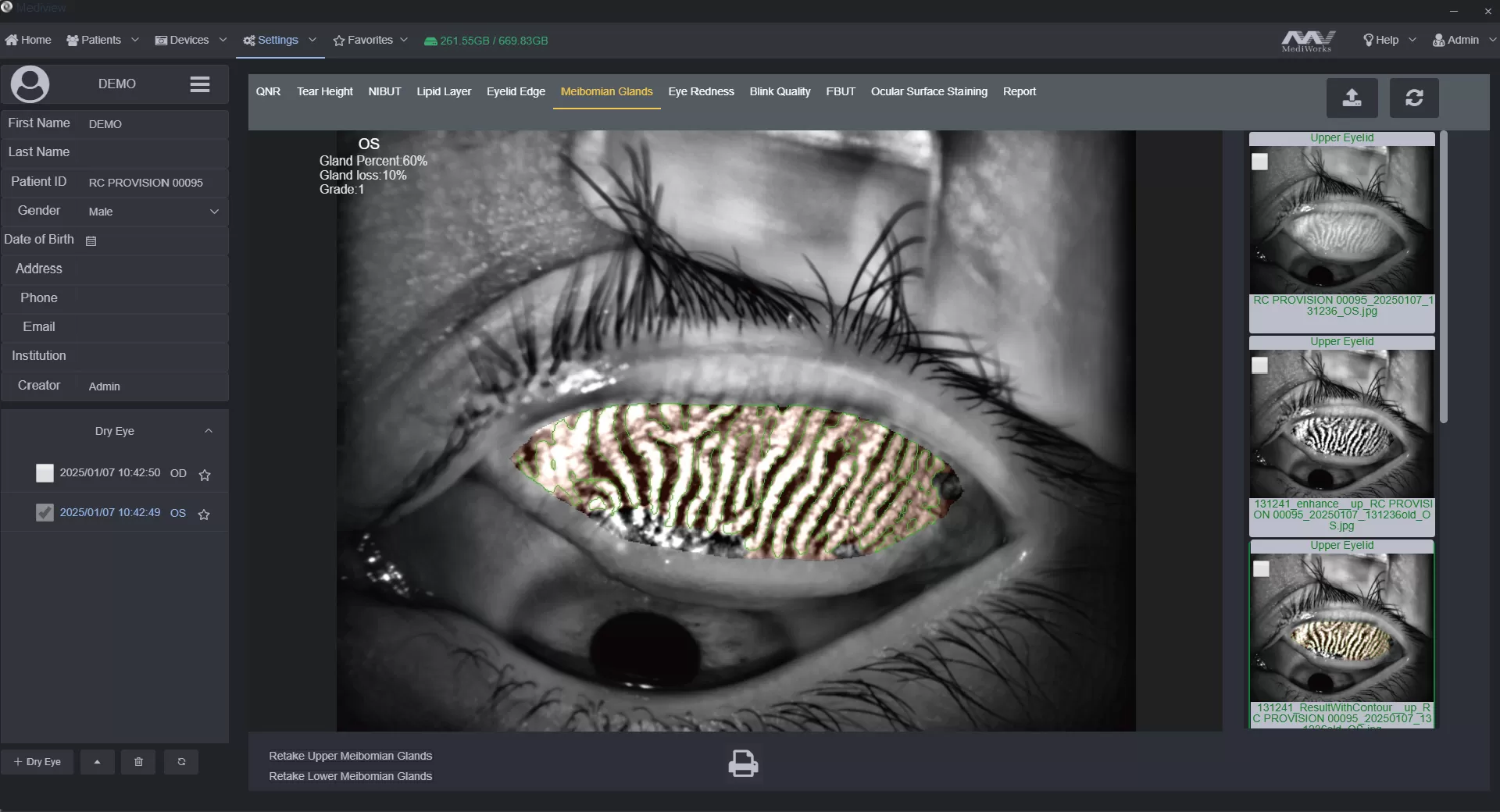

The Firefly S390L meibomian gland analysis interface

Meibomian Gland Analysis — AI-assisted gland loss evaluation via infrared meibography

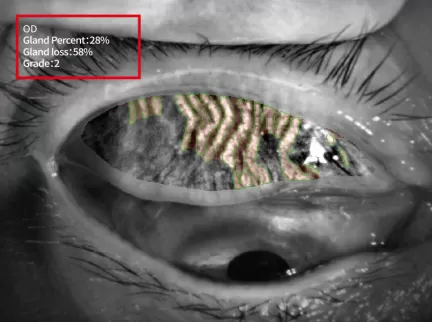

The Firefly S390L meibomian gland loss detail

Gland Loss Detail — High-magnification infrared imaging of meibomian gland structure

The Firefly S390L wide dynamic range anterior segment image

Wide Dynamic Range — Iris and sclera captured simultaneously with realistic color

Clinical images and software screenshots courtesy of MediWorks.

Specifications

Technical Details

Microscope Type
Galilean, 5-step revolving drum
Magnification
6.3×, 10×, 16×, 25×, 40× (12.5× eyepieces)
Optical Resolution
2700 × N lp/mm (200 lp/mm)
Image Sensor
1/2.5" 12 MP (4056 × 3040)
Video
2592 × 1944 @ 30 fps, MP4 H.264
Slit Width
0–14 mm continuous
Slit Length
1–14 mm continuous
Slit Angle
0–180°
Slit Inclination
5°, 10°, 15°, 20°
Aperture Diameters
14, 10, 5, 3, 2, 1, 0.2 mm
Filters
Heat-absorbing, ND, Red-free, Cobalt blue, Built-in yellow
Light Source
LED, ≥150 klx luminance
PD Range / Diopter Adjustment
52–80 mm / ±8D
Transmission Interface
USB
PC Requirements
Connects via USB to your existing exam lane CPU or any Windows PC (MediView software included)
Dimensions / Weight
740 × 450 × 530 mm / 17 kg (net)
Power
100–240V AC, 50/60 Hz, 1.2A
