Keeler Ophthalmic Ultrasound
Keeler

Keeler Ophthalmic Ultrasound

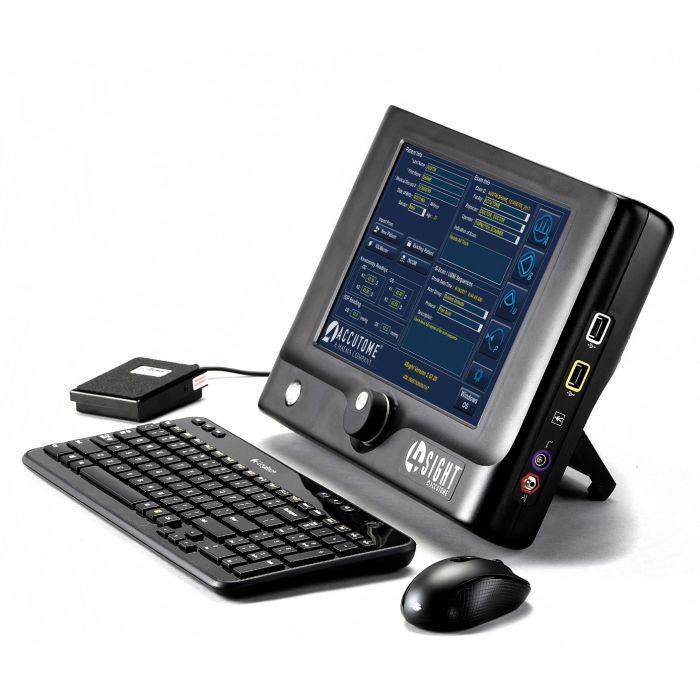

Keeler’s ophthalmic ultrasound family is built around the 4Sight platform — a modular all-in-one system that combines A-Scan biometry, B-Scan imaging, UBM (ultrasound biomicroscopy), and pachymetry in a single touchscreen console with interchangeable probes. For practices and surgical centers that need diagnostic ultrasound capabilities tailored specifically to ophthalmic applications — from pre-cataract axial length measurement to posterior segment imaging when media opacities prevent direct visualization, to high-resolution anterior segment and angle analysis.

Request Pricing → Schedule a Demo →
Practice Fit

Where Keeler Ultrasound Wins

If your practice needs modular ophthalmic ultrasound capabilities — biometry, posterior segment imaging, anterior segment analysis — from a single expandable platform, the 4Sight system delivers.

Best Fit

Cataract surgeons needing reliable biometry, retina specialists requiring posterior segment imaging through opaque media, and anterior segment specialists performing angle and ciliary body analysis — particularly practices that want modular ultrasound capabilities from a single platform.

Why This

Rather than purchasing separate A-Scan, B-Scan, and UBM systems, the 4Sight platform lets practices start with one modality and add probes as clinical needs grow. Shared console, shared software, one DICOM workflow.

Practice Impact

Modular investment path means practices pay for the ultrasound capabilities they need now and expand later. Portable USB probes also work with the standalone Connect software on any Windows PC, adding flexibility for multi-location practices.

Platform Strengths

Why Practices Choose Keeler Ultrasound

Modular All-in-One Platform

Start with A-Scan biometry for cataract planning, add B-Scan for posterior segment imaging, add UBM for anterior segment analysis. One console, one workflow, one investment path.

Ophthalmic-Specific Design

Every probe and algorithm is built for eye care applications. A-Scan includes 6 IOL formulas and 4 post-refractive formulas. B-Scan delivers 0.015 mm resolution. UBM provides 48 MHz high-resolution anterior segment imaging.

Flexible Deployment

Probes work with both the 4Sight touchscreen console and the standalone Connect software on any Windows laptop. No software licensing fees. DICOM ready with automatic EMR exports.

Modality Diversity

Keeler Ultrasound Imaging Modes

The 4Sight platform supports multiple ophthalmic ultrasound modalities — A-Scan biometry, B-Scan posterior segment imaging, and UBM anterior segment analysis from a single console.

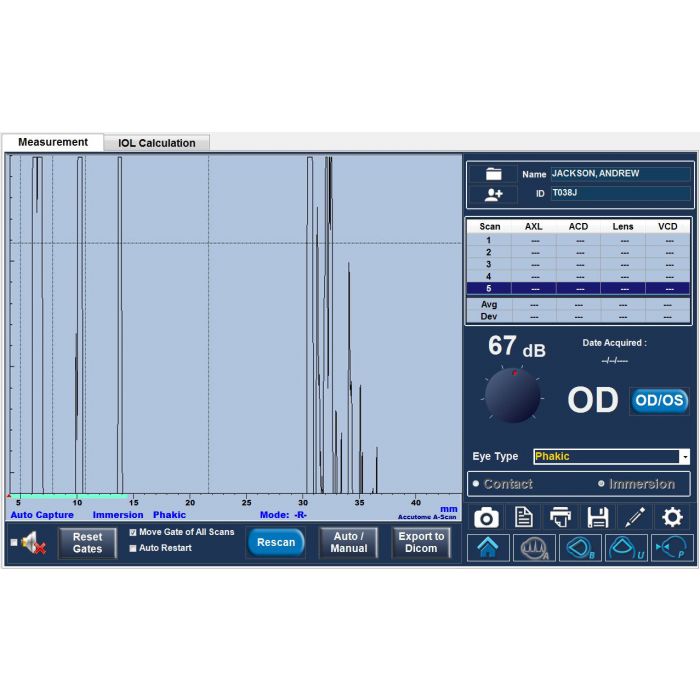

Keeler A-Scan biometry measurement for IOL calculation

A-Scan Biometry — Axial length measurement with IOL formula calculation

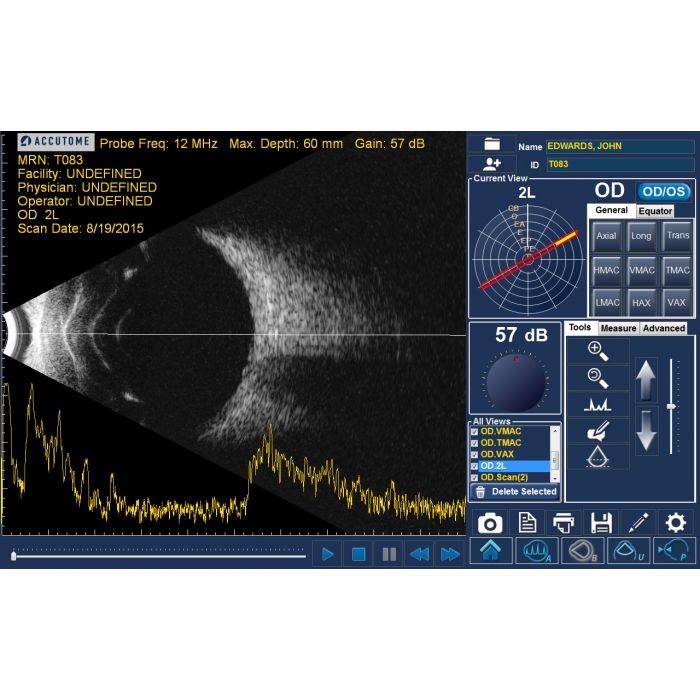

Keeler B-Scan posterior segment imaging

B-Scan Imaging — Posterior segment visualization through media opacities

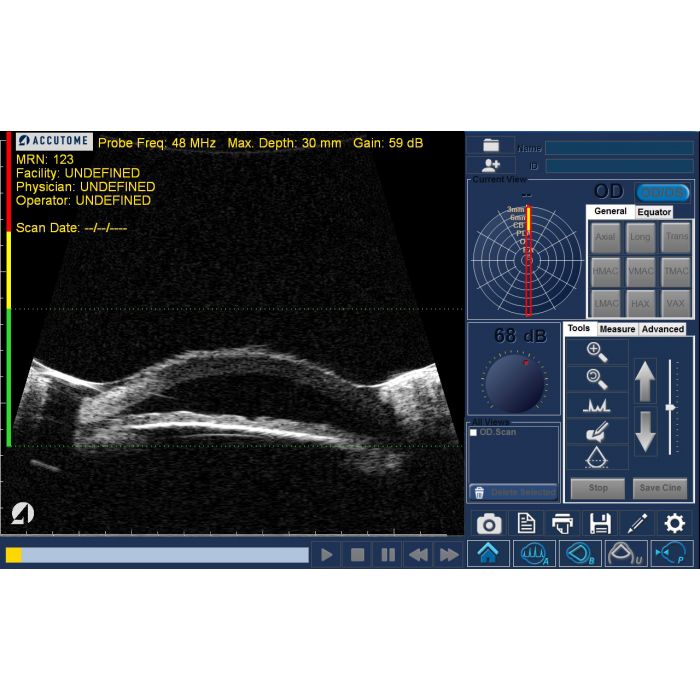

Keeler UBM high-resolution anterior segment imaging

UBM Imaging — High-resolution anterior segment and angle visualization

Product images and clinical screenshots courtesy of Keeler.

Specifications

Technical Details
Platform
4Sight touchscreen console
A-Scan
Immersion + contact modes, 6 IOL formulas, 4 post-refractive formulas
B-Scan
0.015 mm resolution, 12/15 MHz dual frequency, 256 A-scans over 60° sweep
UBM
48 MHz, 60° sweep angle, safety guarded tip
Pachymeter
65 MHz sampling, 9 measurement areas/eye, ±5 µm accuracy
Zoom
Smooth 2× without distortion (B-Scan)
Calipers
12 measuring tools (6 lines, 2 areas, 2 angles, 2 arrows)
Connectivity
DICOM, EMR auto-export, PDF reporting
Probe Design
Portable USB, interchangeable between 4Sight and Connect
Software Licensing
No fees — load on multiple machines
Console Accessories
Wireless mouse/keyboard, probe holders
The Carolina Optics Advantage

Why buy through us?

On-Site Installation & Training

We handle delivery, setup, calibration, and hands-on staff training so your team is capturing diagnostic-quality scans from day one.

Specialty Equipment Consulting

We help you evaluate modality needs, probe configurations, and workflow integration — so you invest in the right ultrasound setup for your clinical volume and case mix.

Same-Day Support

When you need help, you get our team directly — no call center, no ticket queue. Most issues resolved within 24 hours.

Related Products

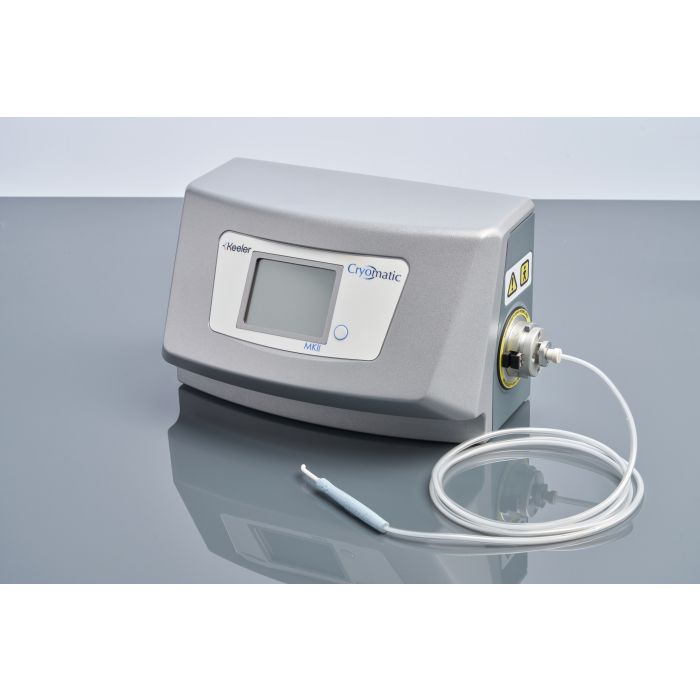

Keeler Cryo Systems
