iCare MAIA TrueColor Microperimetry
iCare

iCare MAIA TrueColor Microperimetry

The iCare MAIA is a TrueColor microperimetry system that combines retinal sensitivity mapping, real-time fundus tracking at 25 Hz, and non-mydriatic confocal fundus imaging in a single automated exam. By measuring macular function point-by-point while simultaneously imaging the retina, the MAIA reveals the functional impact of macular disease that structural imaging alone cannot show — helping patients see the value in their retinal therapies and reducing treatment drop-off. With 60-degree TrueColor, infrared, red-free, blue, and red imaging modalities plus customizable microperimetry test grids, the MAIA gives retina and macular disease practices the structure-function correlation data they need for diagnosis, treatment monitoring, and patient engagement.

Request Pricing → Schedule a Demo →

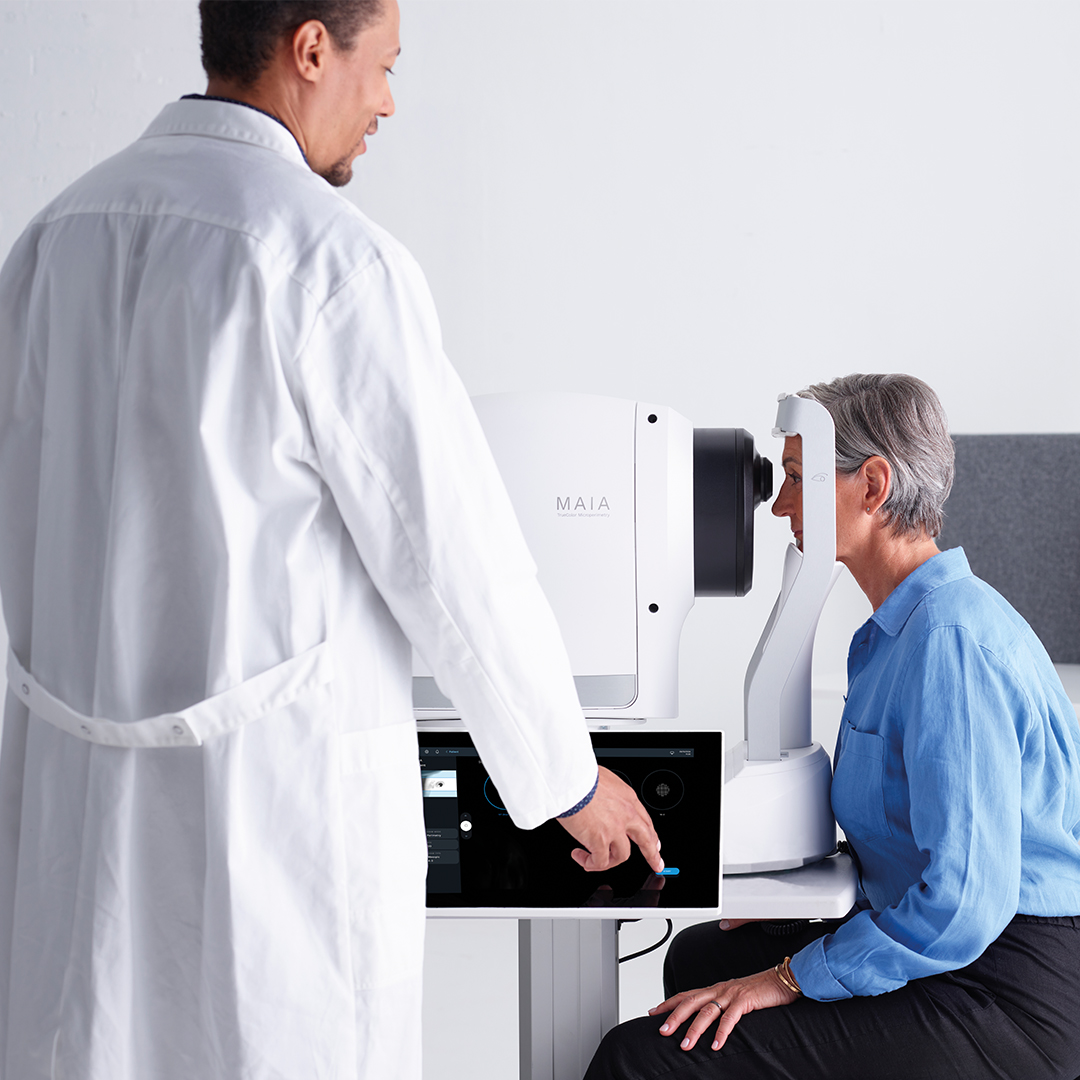

Doctor performing iCare MAIA microperimetry exam with patient
Practice Fit

Where The MAIA Wins

If your practice needs to connect retinal structure to macular function — and show patients the real impact of their disease and the value of their treatment — the MAIA is the platform that bridges that gap.

Best Fit

Retina practices, macular disease specialists, and comprehensive ophthalmology/optometry offices managing AMD, diabetic macular edema, or other macular pathologies — particularly practices that want to demonstrate functional outcomes to patients and reduce therapy drop-off.

Why This

Structural imaging (OCT, fundus photography) shows what the disease looks like. Microperimetry shows how the disease affects the patient’s vision, point by point. The MAIA connects structure to function with real-time tracking that ensures accurate sensitivity mapping even with unstable fixation.

Practice Impact

Patients who can see objective evidence of their macular function — and how it changes with treatment — are more likely to continue therapy. The MAIA transforms abstract retinal disease conversations into concrete, visual functional evidence that supports treatment adherence and reduces drop-off.

Platform Strengths

Why Practices Choose MAIA

Structure Meets Function

Point-by-point retinal sensitivity mapping overlaid on TrueColor fundus images reveals the functional impact of macular disease. Patients see exactly where and how much their vision is affected — not just what the disease looks like.

Real-Time Retinal Tracking

25 Hz automated tracking compensates for fixation loss during testing, ensuring accurate sensitivity measurements even in patients with unstable fixation from advanced macular disease.

Reduce Patient Drop-Off

Objective microperimetry data shows patients the functional benefit of their retinal therapies over time. Visual progression reports and sensitivity maps turn abstract clinical data into evidence that motivates treatment adherence.

Diagnostic Output

Microperimetry & Imaging Examples

Sensitivity maps, fixation analysis, and examination reports from the iCare MAIA — structure-function correlation across TrueColor, infrared, and red-free imaging modalities.

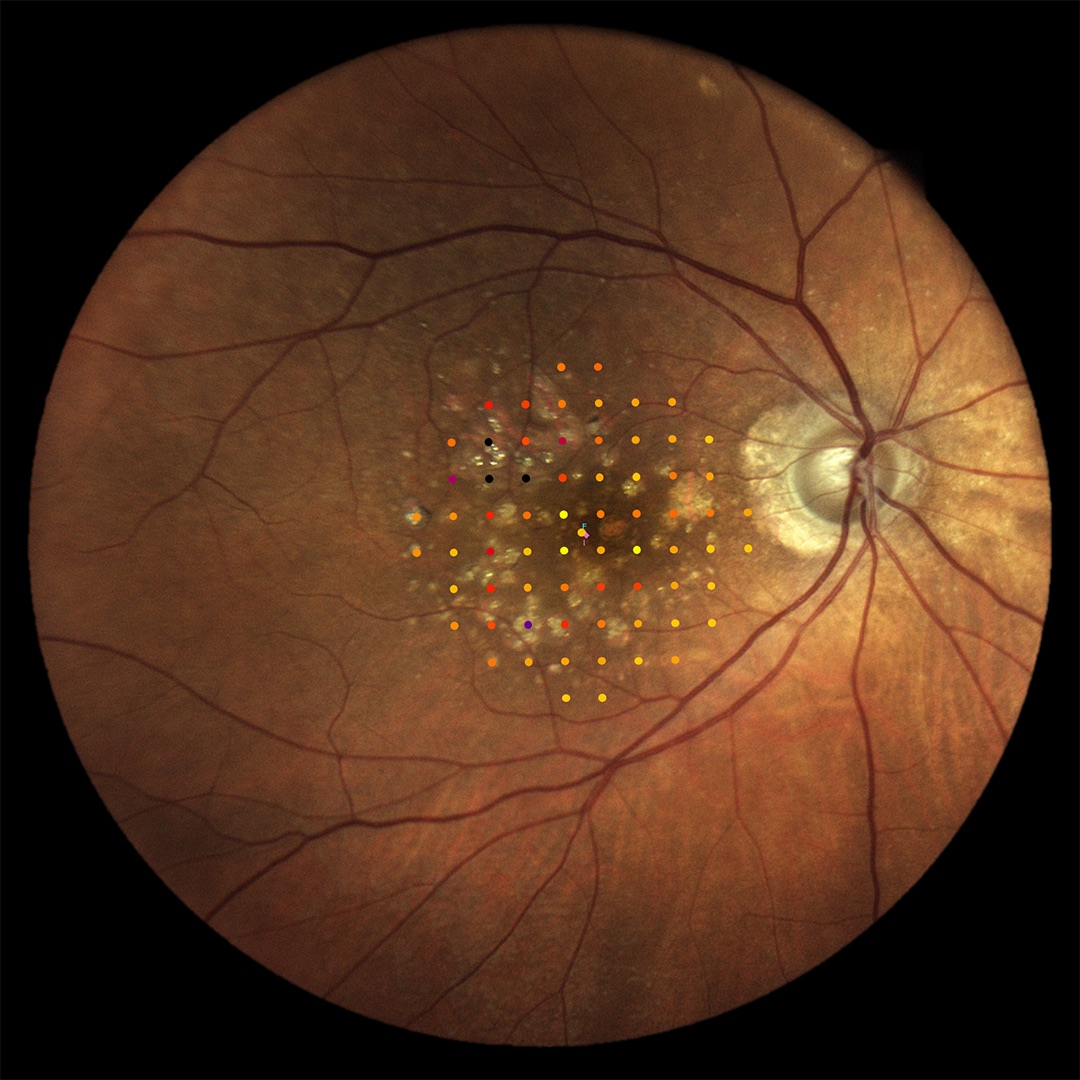

iCare MAIA TrueColor microperimetry grid overlay showing retinal sensitivity

TrueColor Grid Overlay — Sensitivity map overlaid on TrueColor fundus image

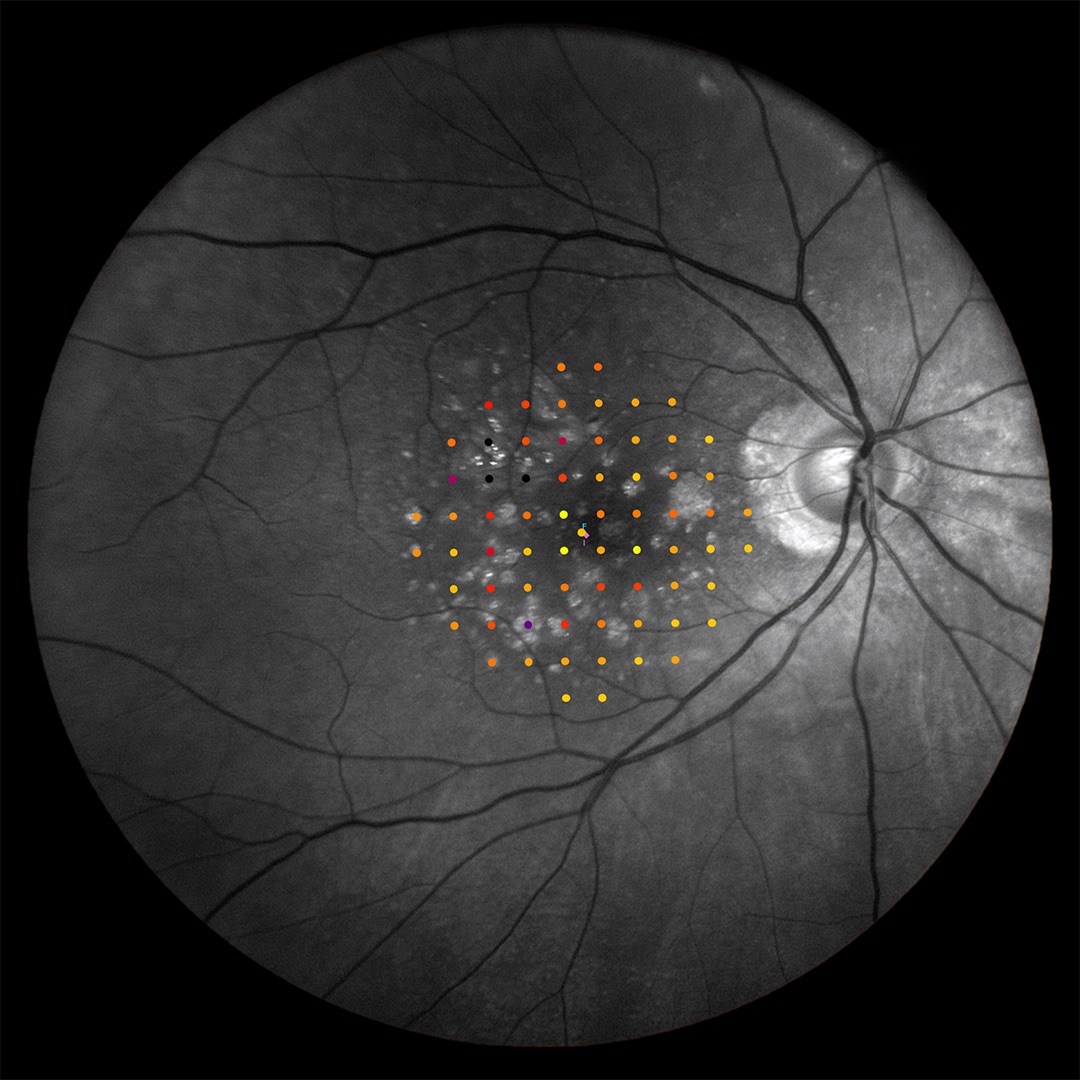

iCare MAIA red-free microperimetry grid showing vascular detail

Red-Free Grid — Sensitivity mapping with enhanced vascular visualization

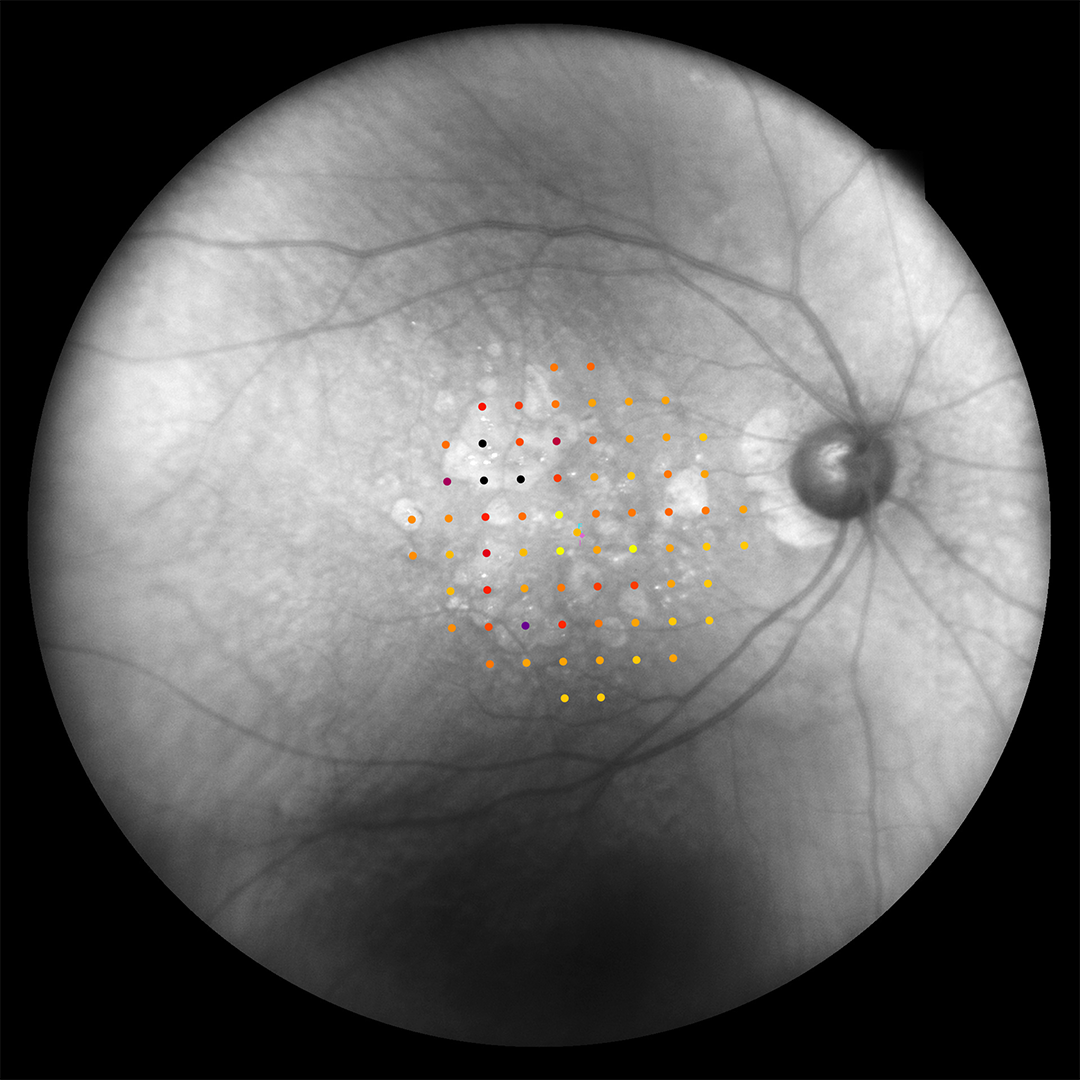

iCare MAIA infrared microperimetry grid for sub-surface detail

Infrared Grid — Sensitivity data with sub-surface retinal detail

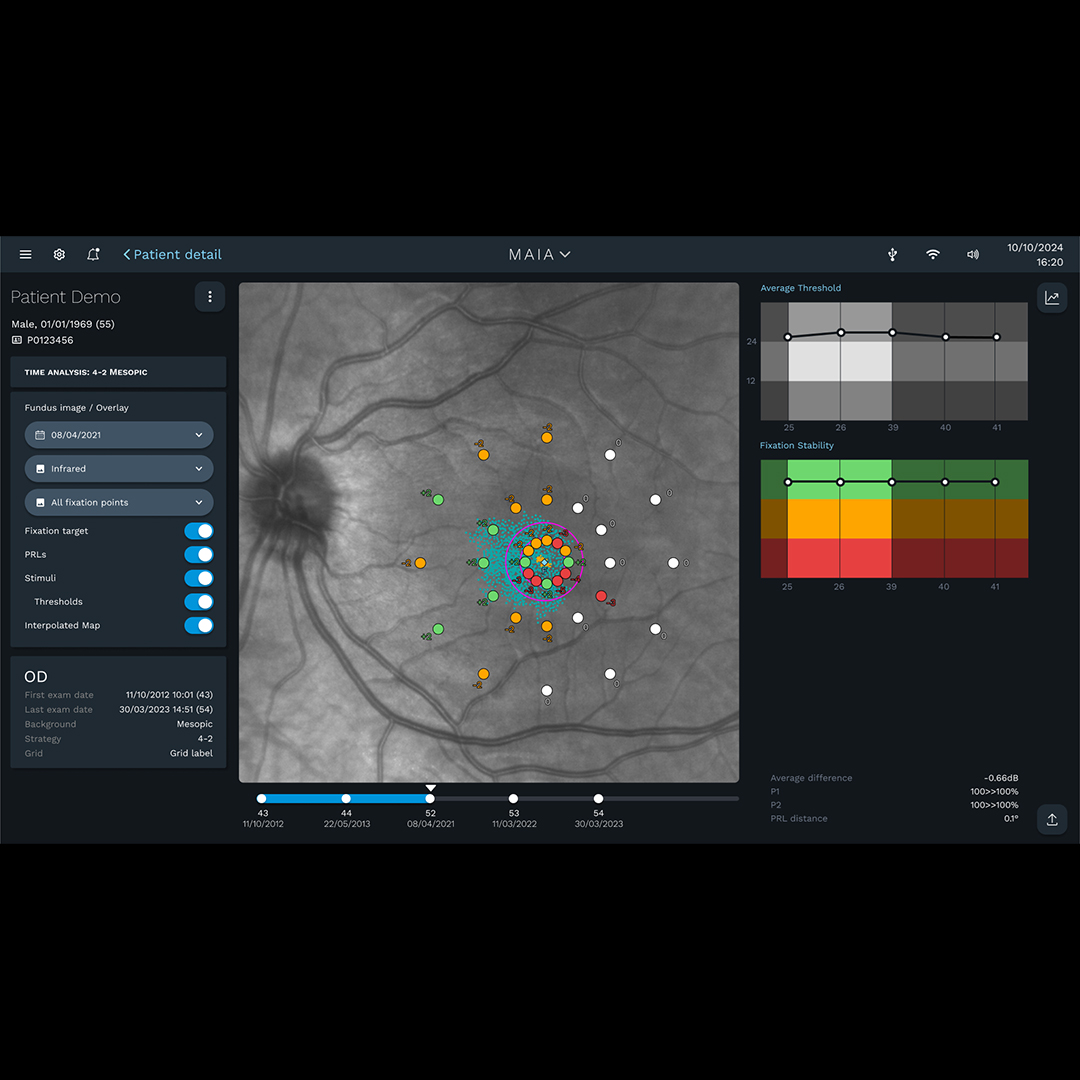

iCare MAIA time analysis showing mesopic sensitivity progression

Time Analysis — Mesopic sensitivity progression tracking over time

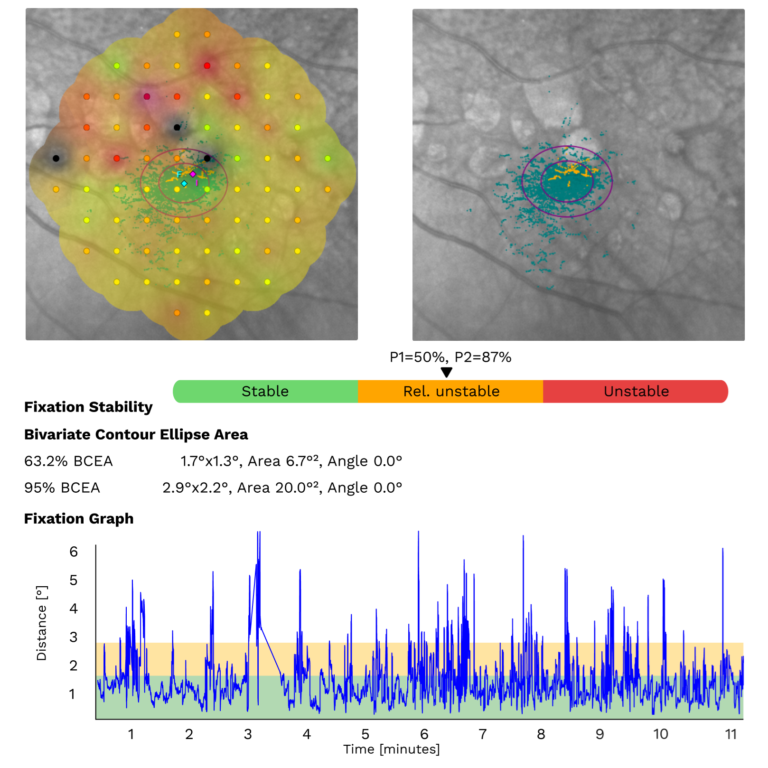

iCare MAIA fixation stability analysis showing preferred retinal locus

Fixation Analysis — Fixation stability and preferred retinal locus mapping

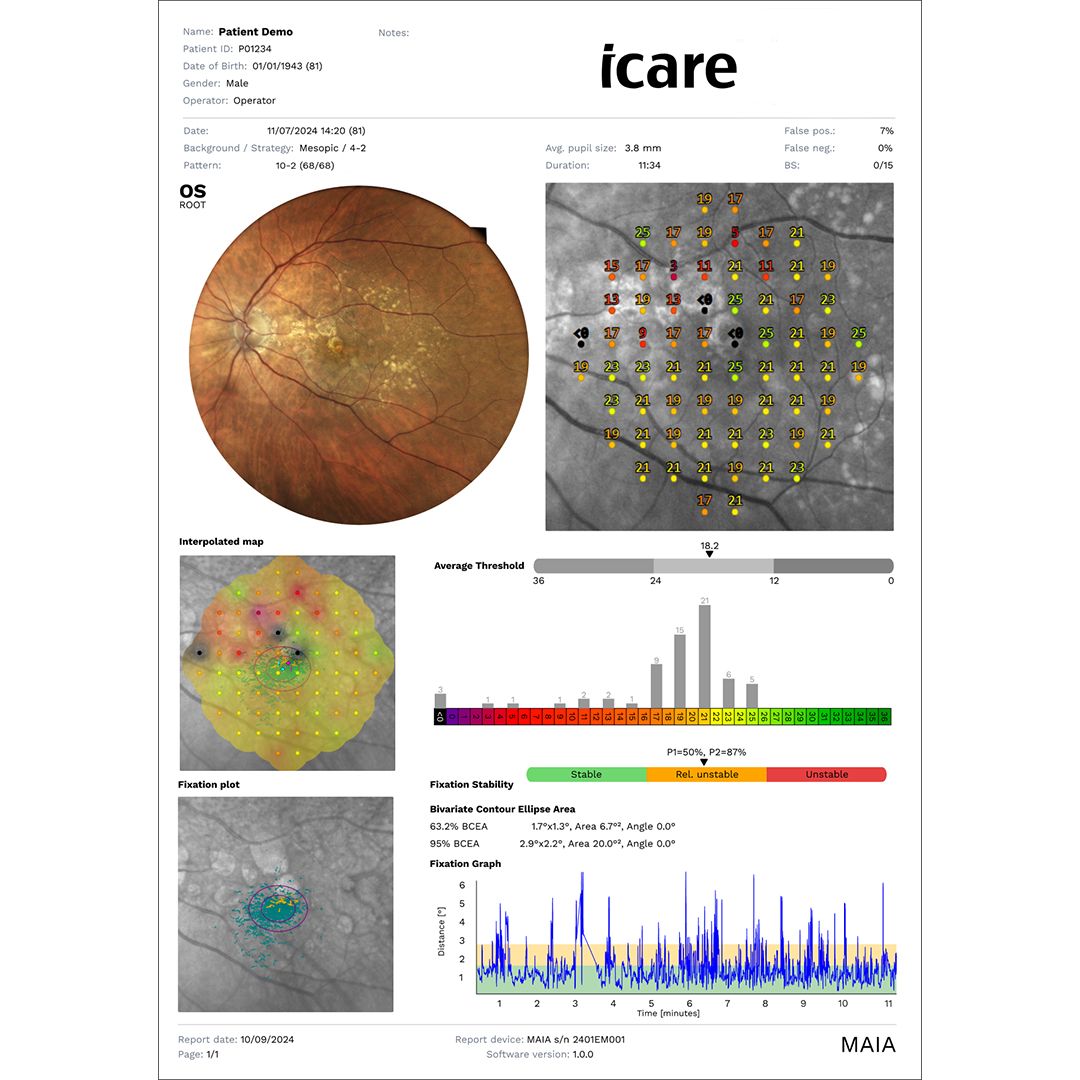

iCare MAIA examination report with sensitivity and fixation data

Examination Report — Comprehensive sensitivity and fixation reporting

Clinical images and examination reports courtesy of iCare / Revenio Group.

Specifications

Technical Details
Technology
TrueColor confocal microperimetry
Projection Field
30°
Background Luminance
4 asb
Maximum Luminance
1000 asb
Dynamic Range
36 dB
Stimulus Size
Goldmann III
Stimulus Duration
200 ms
Retinal Tracking
25 Hz automated
Test Strategies
Full threshold (4-2), Suprathreshold, Fixation only
Test Grids
10° (37 pts), 6° (37 pts), 20° (41 pts), 20° 10-2 pattern (68 pts), Custom
Fundus FOV
60°
Sensor Resolution
5 MP (2592 × 1944)
Imaging Modalities
TrueColor, Infrared, Red-free, Blue, Red
Optical Resolution
17 µm
Min. Pupil Size
3 mm (non-mydriatic)
Auto Refraction
–12D to +15D
Display
15" multi-touch
Connectivity
1 Gbit Ethernet, Wi-Fi (802.11ac/b/g/n), USB export
Storage
SSD 480 GB+
Dimensions (W × H × D)
360 × 590 × 620 mm (14.2" × 23.2" × 24.4")
Weight
27 kg (59 lbs)
Power
100–240 VAC, 50–60 Hz, 80W
Classification
IEC 60601-1 Class II, Type B
